kromschroeder

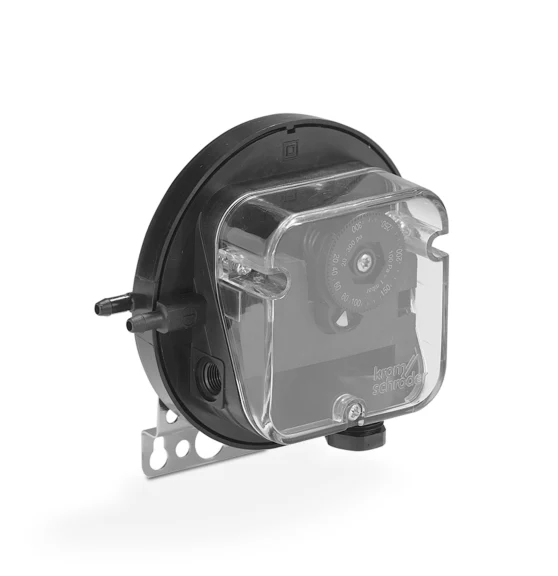

CPS Pressure Switch
Setting: Switching point adjustment via setting dial
Medium: Air, non flamable gasses
Range: 20 to 4000 Pa
Pneumatic connections: Tube connections
Siver contacts, 24-250V AC, 0.05-5A
Gold contacts, 15-250V AC, 0.01-5A
Electrical connection: Screw terminals, M16x1.5 cable gland
Silicone-free versions available

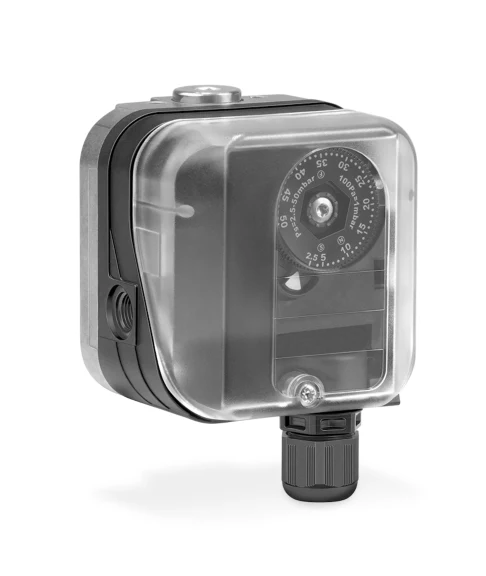

Kromschroder DG Pressure Switches
Range: 0.4 to 500 mbar (0.16 to 200 "WC)
Pneumatic Connections: Internal Rp 1/8" 2x, Rp 1/4" 2x
Siver contacts, 24-250V AC, 0.05-5A
Gold contacts, 5-250V AC, 0.01-5A

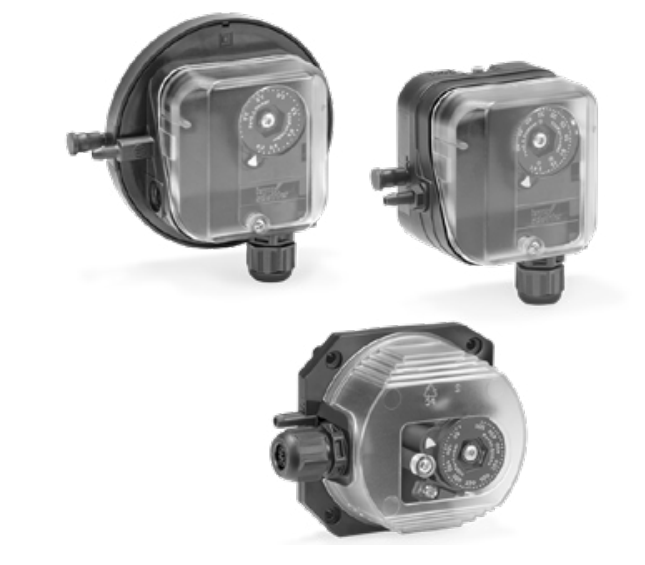

Kromschroder DG.C Pressure Switches
Little space required thanks to compact dimensions
Double pressure switch for minimum and maximum gas pressure monitoring in one unit
Customized versions with fixed switching points can be supplied by agreement
Several connection facilities using various lower sections
Available with sealant-coated external thread

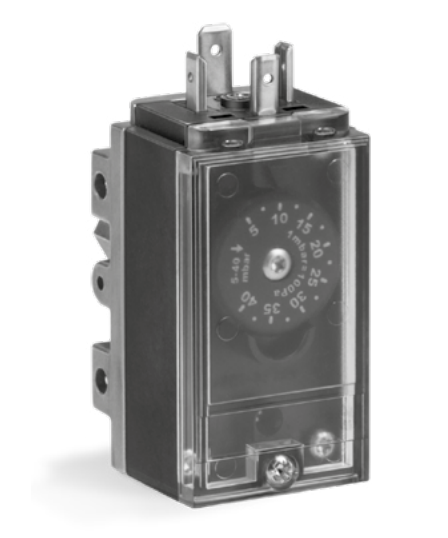

Kromschroder DG.K , DG.A, DG.E Pressure Switches
Monitoring of air, flue gas and other non-aggressive gases
High switching point stability
Switching point selection via hand wheel or adjusting screw
Screw terminals or AMP plugs for electrical connections
Flexible mounting options

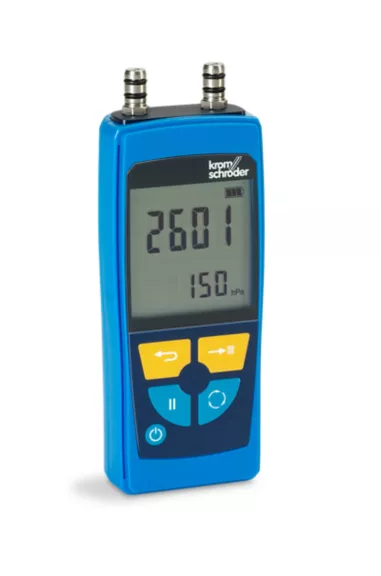

Elektronic Pressure Gauge DMG
For positive pressure, negative pressure and differential pressure measurement
Can be used with gas or air
Measuring ranges: -130 to 130 mbar or -1000 to 1000 mbar
ECLIPSE
Honeywell C6097 Pressure Switches For Gas
Switching point adjustment via setting dial
Positive pressure: Gas, biogas, air, flue gas
Negative/differential pressure: Air, flue gas
1 to 500 mbar (0.4 to 200 "WC)
CE version: internal Rp 1/8" 2x, Rp 1/4" 2x
UL version: internal 1/4" NPT, 1/8" NPT
Siver contacts, 24-250 VAC, 0.05-5A
