Honeywell

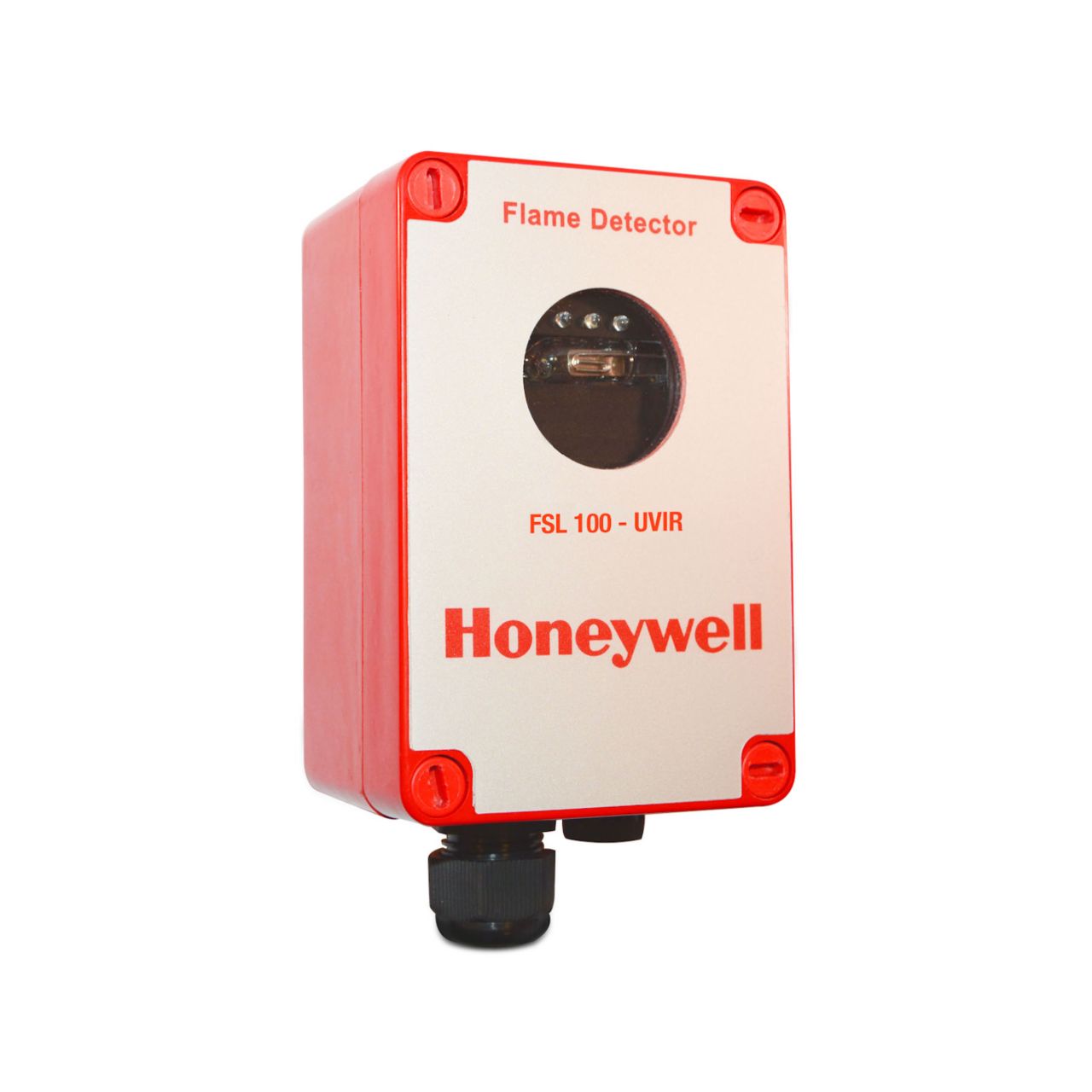

FSL100 Series Flame Detectors UV, UV/IR, IR3
The FSL100 Series of flame detectors from Honeywell delivers robust, fast, and reliable detection of flaming fires in a wide range of applications.
With a large field of view it can detect a range of different types of fire including hydrocarbon and non-hydrocarbon sources.
High speed sensors and microprocessor with False alarm rejection.
Especially suitable fires that emit large amounts of smoke
Affected less by window contamination or smoky fires
Applications
Semi-conductor, pharmaceutical, & hospital operating rooms, CNG filling/refilling for buses (public transportation), Cold storage, Diesel engine rooms, Electric power transformers, Engine test cells/rooms, Fume hoods, Gas cabinets, Gas/Gasoline engine rooms, Heating rooms for chemicals, Indoor chemical, fuel, and solvent storage, Indoor hydrocarbon storage and processing, Indoor hydrogen storage and processing, Laboratories, Oil and Gas pipe line and pumping stations, Outdoor chemical, fuel, paint, and solvent storage, Outdoor hydrogen storage and processing, Paint spray booths, Radio amplifier rooms / Isolators for antennas, Recycling and waste processing plants
ATEX certificate, FM3260 approval

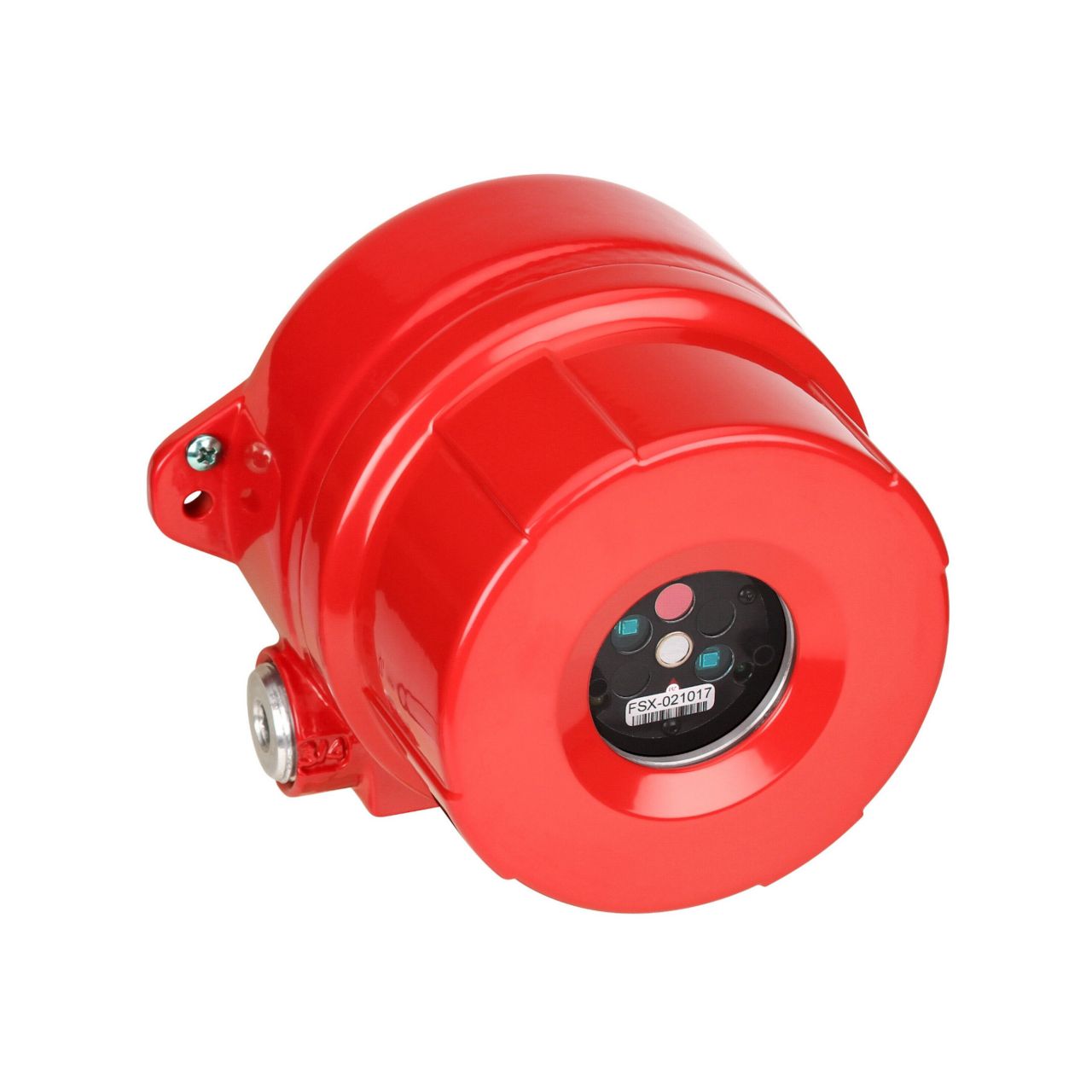

FS20X - Multi-Spectrum UV/Dual IR/VIS Fire and Flame Detector
The FS20X is the latest generation high technology Multi Spectrum (UV/Dual IR/VIS) Fire and Flame Detector, which is part of the FSX family of advanced technology Electro-Optical Flame detectors.
Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions.
PC software and interface module (FSIM) for fault diagnostics real-time graphs (RTGs), and downloading of FirePics™ and event log
Automatic Optical Path and Electronic self-test
Event log — Up to 200 events with date and time stamp
APPLICATIONS
Refineries and oil production facilities
Off-Shore platforms
Turbine/Compressor enclosures
Acetylene processing and storage
Oil and Gas pipelines and pumping stations
LNG/LPG loading and unloading facilities
Natural Gas and CNG plants
Ethanol, Methanol, and IPA production and storage
Crude oil and gasoline storage and tank farms
Aircraft hangars
Hydrogen plants and storage
Paint and solvent storage
Chemical production, storage, and loading facilities
Power plants
Silane gas storage
FS24X -Multi-Spectrum QuadBand Triple IR /FS24X Plus Multi-Spectrum QuadBand Triple IR Flame Detector
FS24X is a quantum leap in flame and fire detection with its sophisticated software and detection technology.
The FS24X Plus is a triple IR flame detector using Honeywell’s WideBand IR™ infrared technology to detect hydrocarbon and hydrogen fires quickly and reliably — before they grow — even in the presence of environmental inhibitors like rain, fog, and smoke.
Dual microprocessors provide a high level of fail-safe operation combined with fast and reliable performance.
The FSX family of detectors feature our patented FirePic data storage and information retrieval facility. FirePic™ records pre-fire data, which can be recovered from the Detector’s non-volatile flash memory for post fire analysis and postulation of the fire cause
The FS24X detector has a detection range greater than 60 m (200 feet) (Very High Sensitivity setting) for the detection of a 0.1 m2 (one square-foot) Heptane reference fire and has a cone of vision far greater in volumetric coverage than any other Multi-Spectrum IR Detector.
CERTIFICATIONS
FM : Class I, Div. 1 & 2, Groups B, C, & D; Class II, Div. 1 & 2, Groups E, F, & G; Class III
FM : II 2 G Ex db IIC T4 (Ta: -60 to +110°C), T5 (Ta: -60 to +75°C), T6 (Ta: -60 to +60°C), II 2 D Ex tb IIIC T135°C (FS24X-9, 90° Field of View) II 2 G Ex db IIC T4 (Ta: -40 to +110°C), T5 (Ta: -40 to +75°C), T6 (Ta: -40 to +60°C), II 2 D Ex tb IIIC T135°C (FS24X-9, 110° Field of View): Complies with EN6100-6-4 & EN50130-4 INMETRO CU-TR
SIL Rating : FMEDA available on request
EN54-10 : FS20X certified 1175a/01 (LPCB); CPR 0832-CPR-F0515
APPLICATIONS
Refineries and oil production facilities
Off-Shore platforms
Turbine/Compressor enclosures
Acetylene processing and storage
Oil and Gas pipelines and pumping stations
LNG/LPG loading and unloading facilities
Natural Gas and CNG plants
Ethanol, Methanol, and IPA production and storage
Crude oil and gasoline storage and tank farms
Aircraft hangars
Paint and solvent storage
Chemical production, storage, and loading facilities
Power plants
