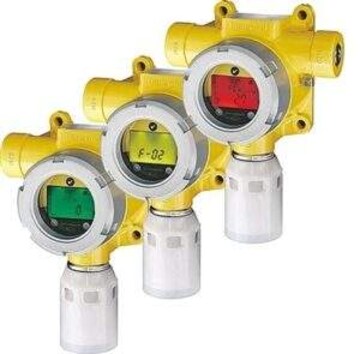

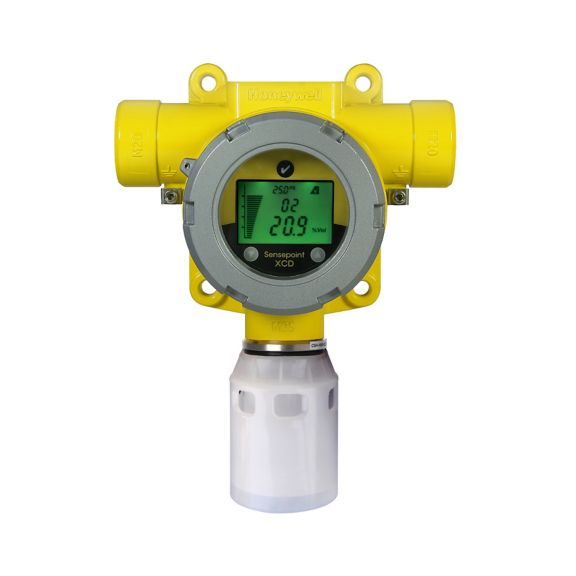

Sensepoint XCD

Flammable, toxic and oxygen gas detector for industrial applications.

User friendly and intuitive tri-color backlit display with digits, bar graph and icons and Fully configurable via magnetic switches.

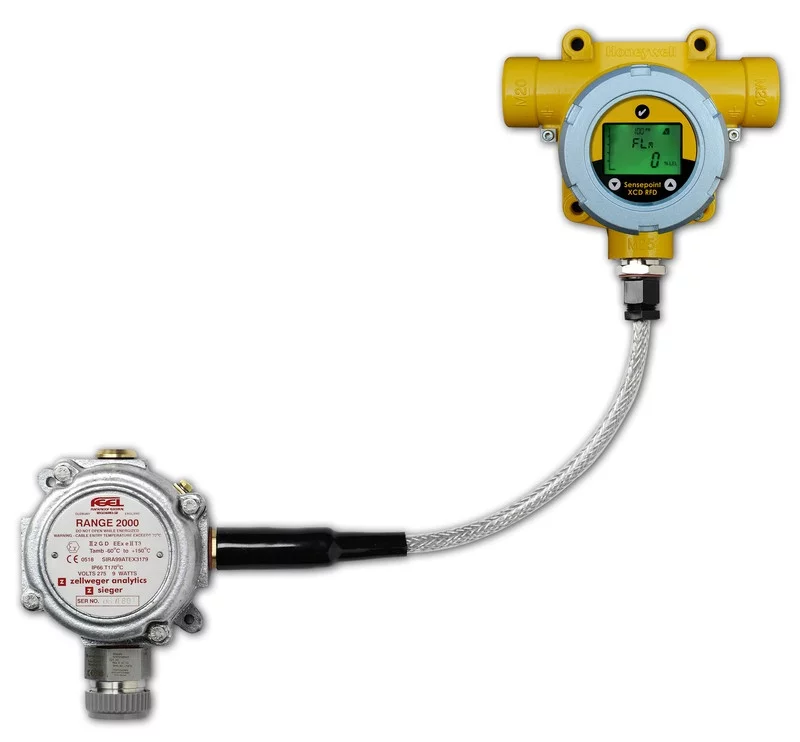

Sensepoint XCD RFD/ RTD

Remotely monitor toxic gases in Class 1, Div 2 areas while reducing the maintenance, training and overall cost of gas monitoring.

With remote toxic and Oxygen sensor mounting of up to 100 feet (30m) away from the transmitter.

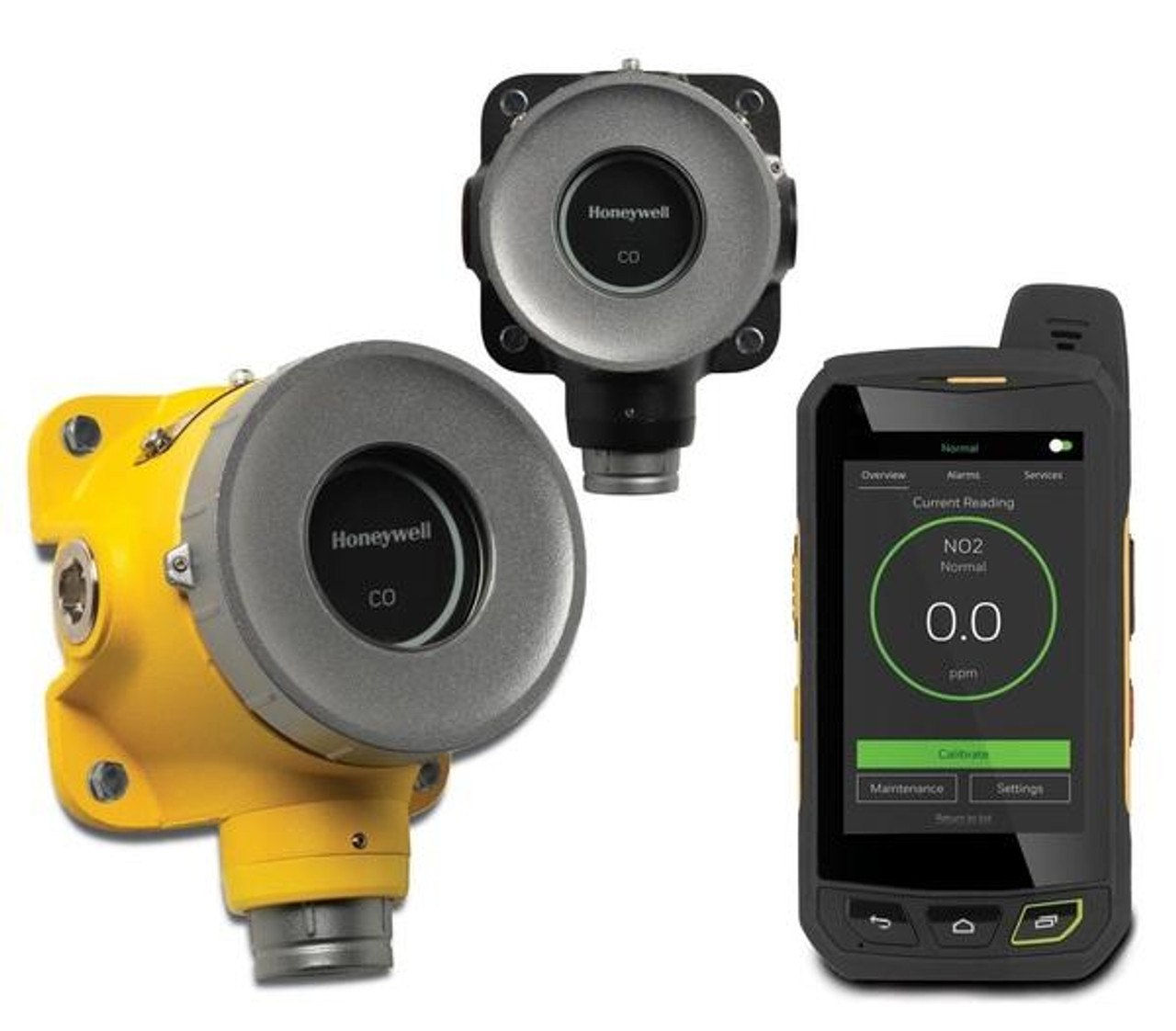

Sensepoint XRL

Sensepoint XRL is a fixed point gas leak detector that is designed to meet the needs of industrial applications

Sensepoint XRL's smartphone interface with Bluetooth for much faster calibration, configuration and bump tests.

Multi-color visual indicator to show status makes it easier to know the detector status immediately and identify detectors that require attention or are warning of danger.

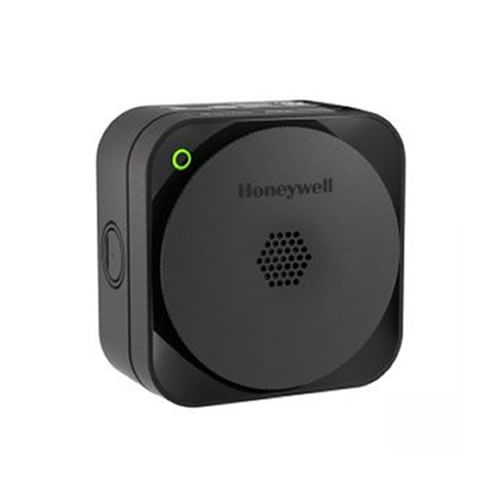

Sensepoint XCL

Sensepoint XCL is a fixed point gas leak detector that is designed to meet the needs of commercial and light industrial applications.

Sensepoint XCL is available with either mA loop analog output or Modbus RTU with the option for relays on both.

Simplified maintenance with familiar smartphone technology saves money and time.

Multi-color visual indicator to show status makes it easier to know the detector status immediately and identify detectors that require attention or are warning of danger.

Series 3000 MkII and MkIII

2-wire loop powered toxic and Oxygen gas detector for use in potentially explosive atmospheres - explosion proof and intrinsically safe versions.

These low powered gas detectors all feature a loop powered 4-20 mA connection, making them ideal for both new and retrofit installations

Proven electrochemical sensing technology and Long-life sensing elements.

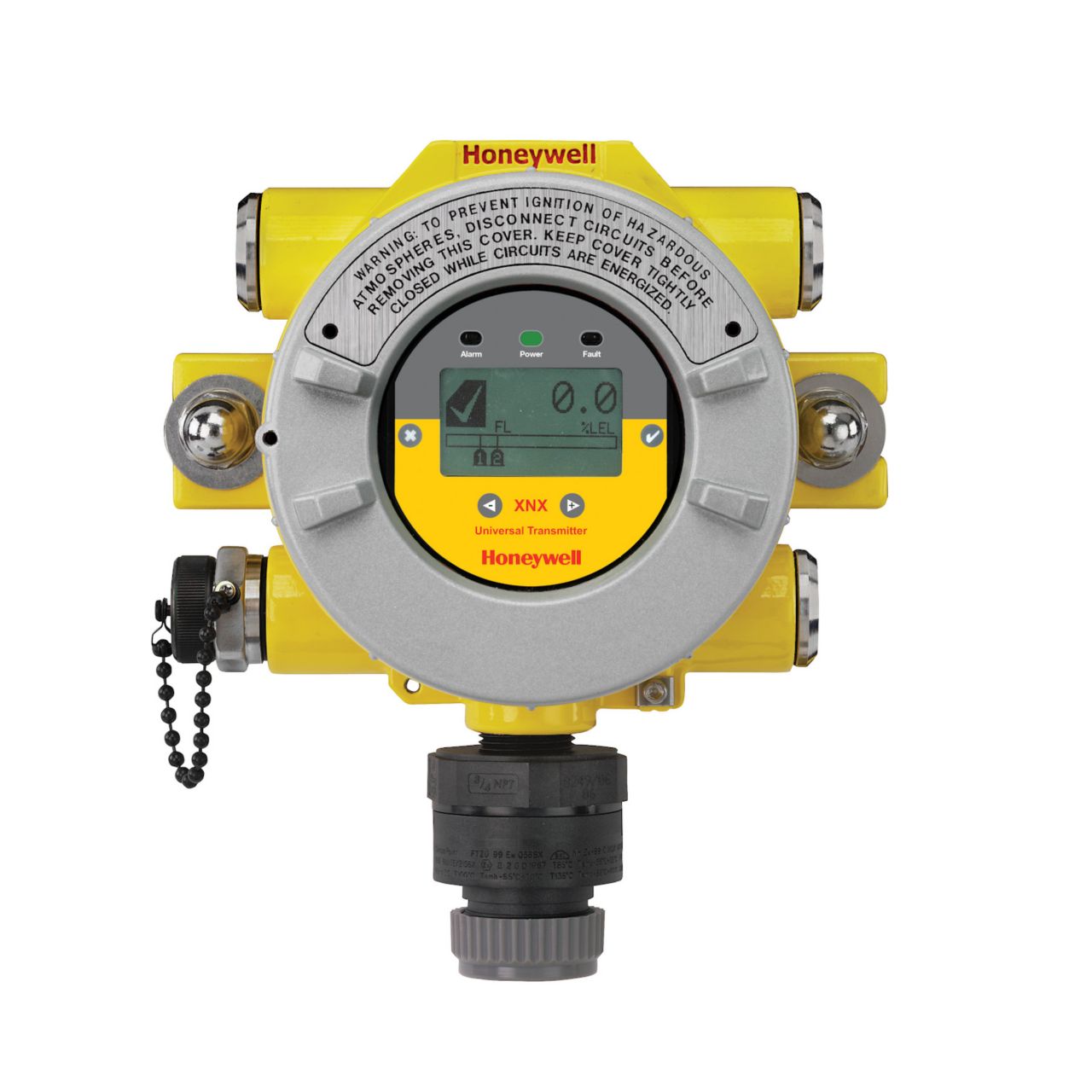

XNX Universal Transmitter

A universal transmitter compatible with all Honeywell Analytics gas sensor technologies.

XNX has three basic personalities (configurations) which support different types of sensor.

XNX has two integral mounting lugs on the transmitter body. The transmitter may be fixed directly to a surface, or to a horizontal or vertical pipe/ structure.

XNX is designed for use in potentially explosive atmospheres.

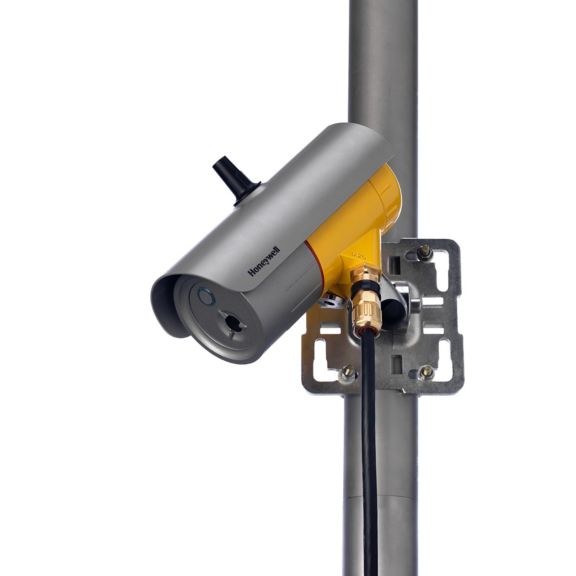

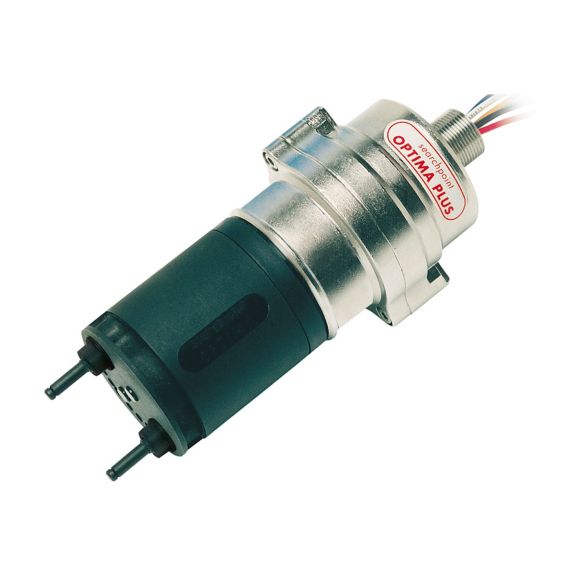

Searchpoint Optima Plus

Advanced infrared point gas detector

It Optional HART® over 4-20mA output and can detect a wide range of hydrocarbon gases including solvents

Searchpoint Optima Plus is an infrared point Hydrocarbon gas detector certified for use in potentially explosive atmospheres.

Safety Approvals ATEX : Baseefa13ATEX0296X, II 2 GD Ex d op is IIC Gb Ex tb IIIC Db, T96°C (Tamb -40°C to +65°C), T86°C (Tamb -40°C to +55°C), IP 66/67, UL / CSA: Class 1, Div 1, groups B, C, and D (-40°C to +65°C),

IECEx : II 2 GD Ex d op is IIC Gb Ex tb IIIC Db T86°C (Tamb -40°C to +55°C) or T96°C (Tamb -40°C to +65°C) IP66/67, CU-TR-EX (Russian Customs Union) - XTC Version 1Ex d op is IIC T5/T4 Gb X (Tamb -60°C to +65°C)

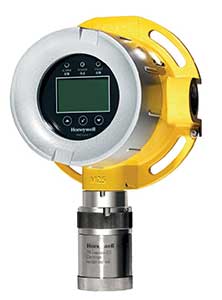

RAEGuard 3

Universal transmitter with standard configuration of 3-wire, 4-20mA and RS485 MODBUS output for use with a wide range of applications for the detection of flammable, toxic and Oxygen gas hazards.

3-wire 4-20mA current output can be fine-tuned to avoid the signal attenuation caused by wiring and its optional Bluetooth® for easy remote operation and maintenance via mobile app.

Fully configurable via non-intrusive magnetic switches by single person

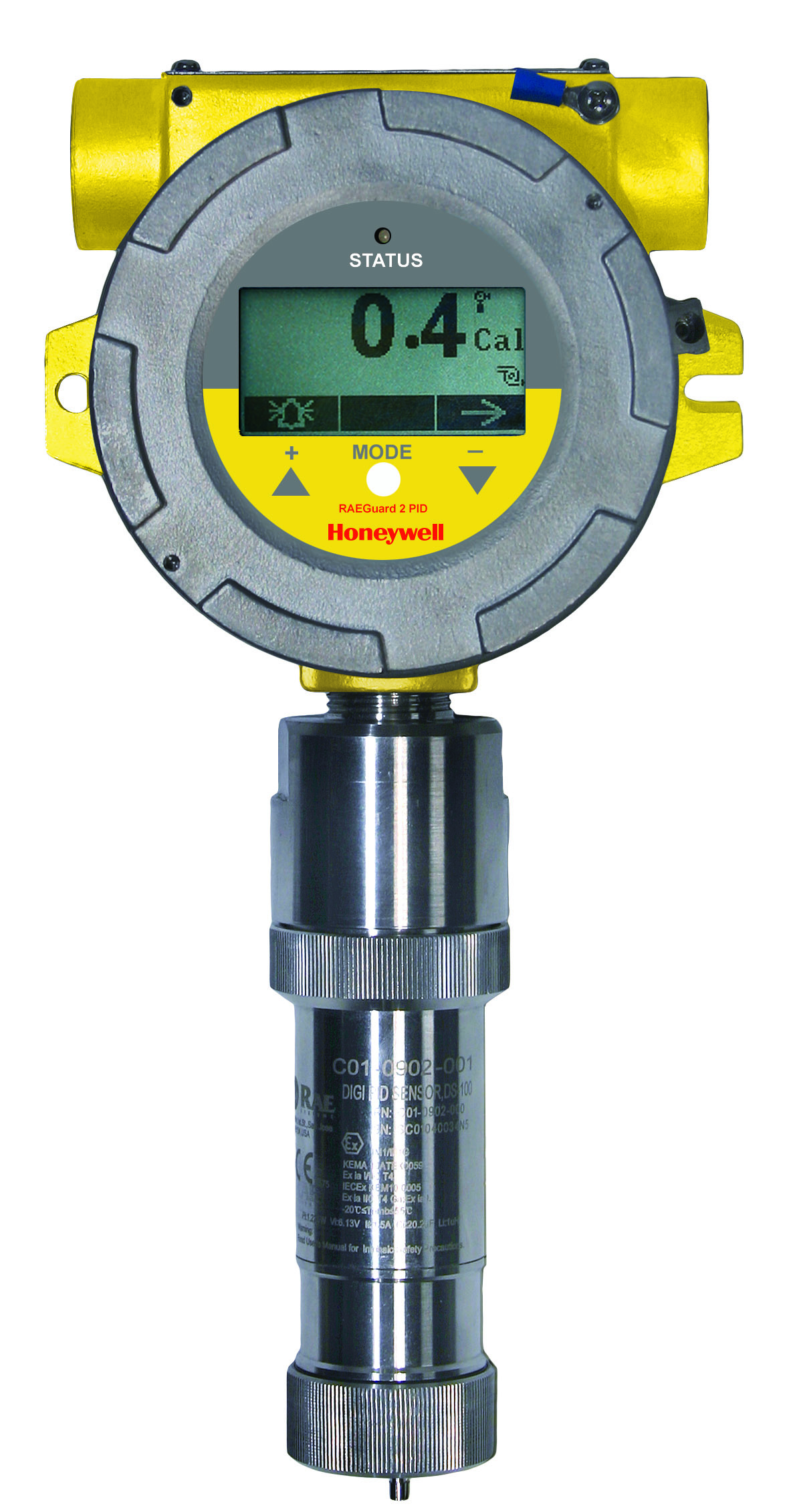

RAEGuard 2 PID Fixed photoionisation detector (PID)

The RAEGuard 2 PID has a graphic display and LED light status indicator for fault and alarm conditions.

It comes in three diffrent ranges 1-1000 PPM, 0.1-1000 PPM, 0.01-100 PPM.

The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analogue (4-20 mA) three-wire signal output, and RS-485 Modbus digital signal output

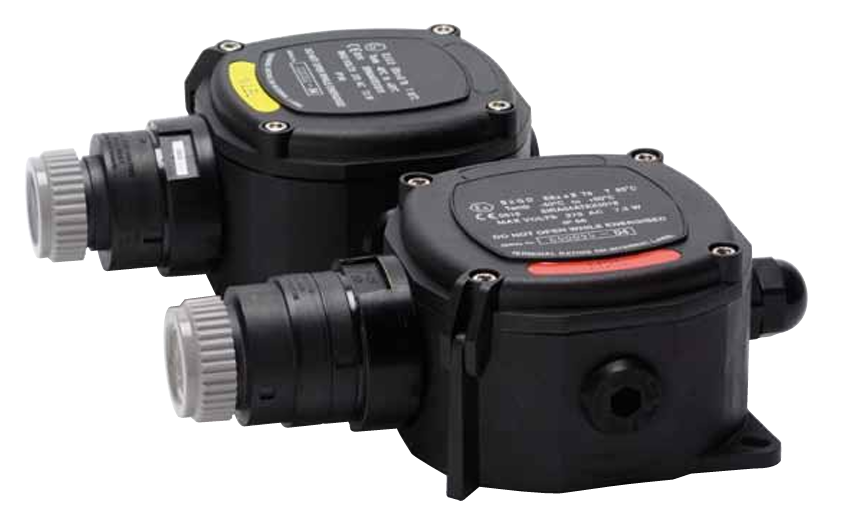

Sensepoint Zareba/ RANGE

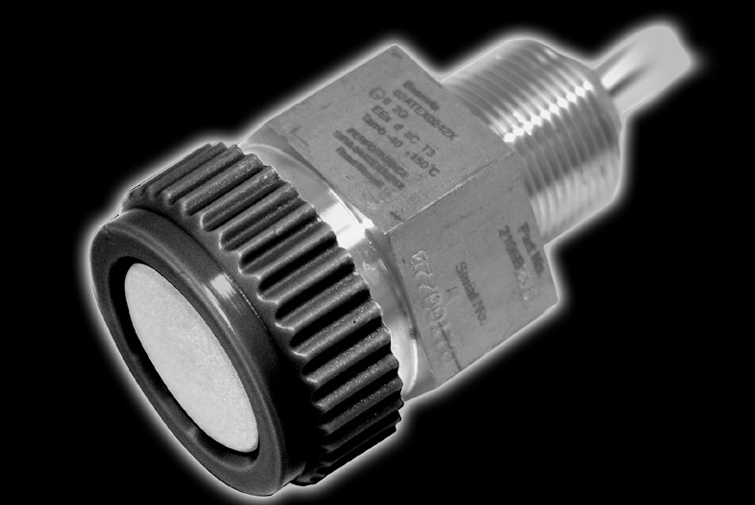

Sensepoint High Temperature (HT) Sensor

The Sensepoint High Temperature (HT) Combustible Gas Sensor is a sealed disposable sensor for the detection of flammable gases.

Measuring ranges from 0-20% LEL to 0-100% LEL with Wide range of accessories.

Thermally matched beads provide optimum accuracy and stability and Proven technology from the World leader in combustible gas detection.

Certification : II 2 GD Ex d IIC T3 Gb Tamb -55°C to +150°C, tb IIIC T200ºC Db IP66 A21, Baseefa08ATEX0264X, IECEx BAS08.0069X

Typical applications include turbine enclosures and drying ovens used in solvent based printing and coating machines.

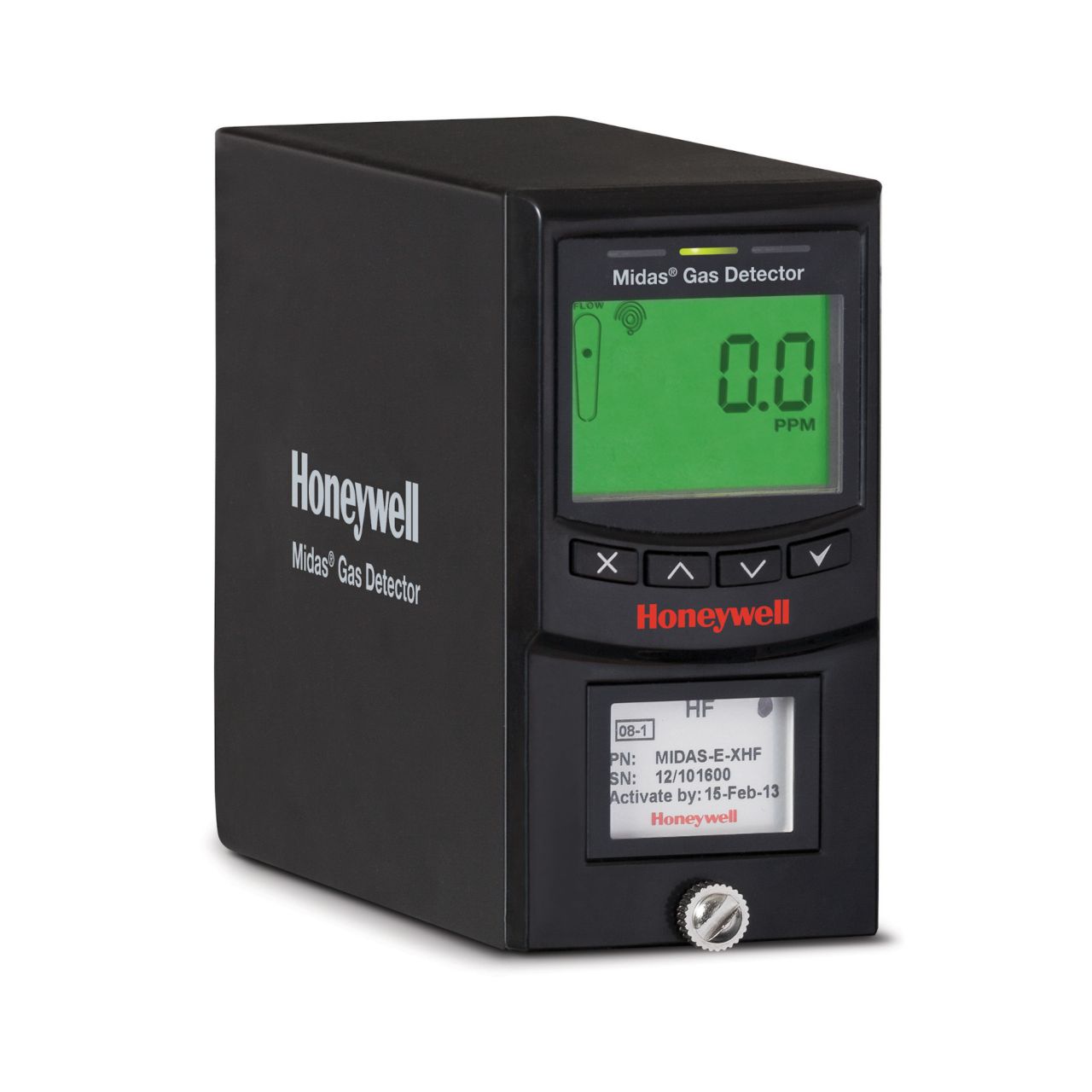

Midas Gas Detector

Bringing new visibility, reliability and ease of use to gas detection in semiconductor processing and industrial manufacturing.

Bright LEDs and intuitive icon driven, large multicolor backlit LCD display and Isolated 0-21 mA analog output with fault and event reporting.

The device monitors points up to 30 meters (100 feet) away while using patented technology to regulate flow rates and ensure error-free gas detection.

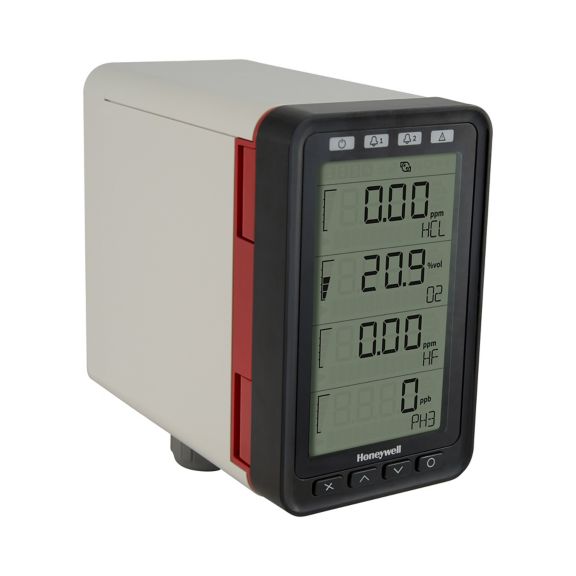

MIDAS - M

The Midas-M is a Fixed Extractive Single Point with 4-in-1 Multi Gas Detector to detect more than 30 gases - precisely, easily, quickly, that draws a sample locally or from a remote point to a sensor cartridge that is located inside the detector's chassis. A side range of toxic, flammable and oxygen gas sensor cartridges are available that enable detection of gases used or generated in the Semiconductor and other manufacturing industries.

MIDAS - M

The Midas-M is a Fixed Extractive Single Point with 4-in-1 Multi Gas Detector to detect more than 30 gases - precisely, easily, quickly, that draws a sample locally or from a remote point to a sensor cartridge that is located inside the detector's chassis. A side range of toxic, flammable and oxygen gas sensor cartridges are available that enable detection of gases used or generated in the Semiconductor and other manufacturing industries.

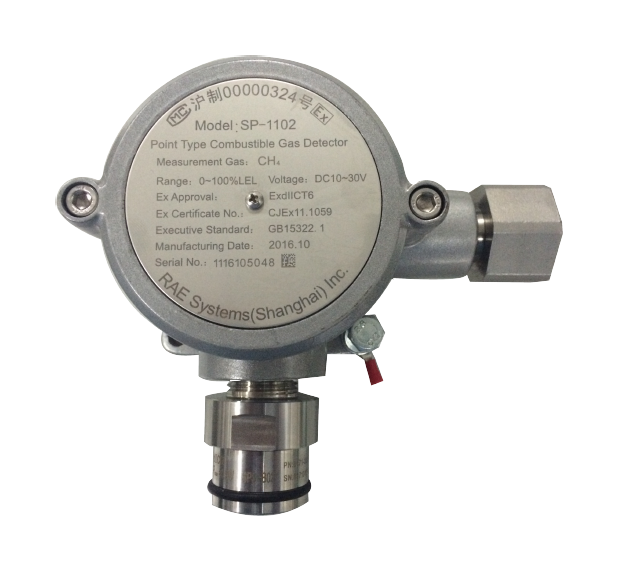

Combustible Gas Detector -Model: SP-1102/ SP-2102 Plus/ SP-2104 Plus

Flame-proof (d) structure, fixed-mounted combustible gas detector adopting smart sensor detection technology.

3-wire 4~20mA analog output signal and one relay output.

4-digit high-flux LED screen and local alarm indication

Certification : Ex d llC T6 Gb, DIP A21 TA, T6

Applications : Petroleum, petrifaction Metallurgy, chemicals.Environmental protection Papermaking, printing Municipal administration Scientific research, education National defence

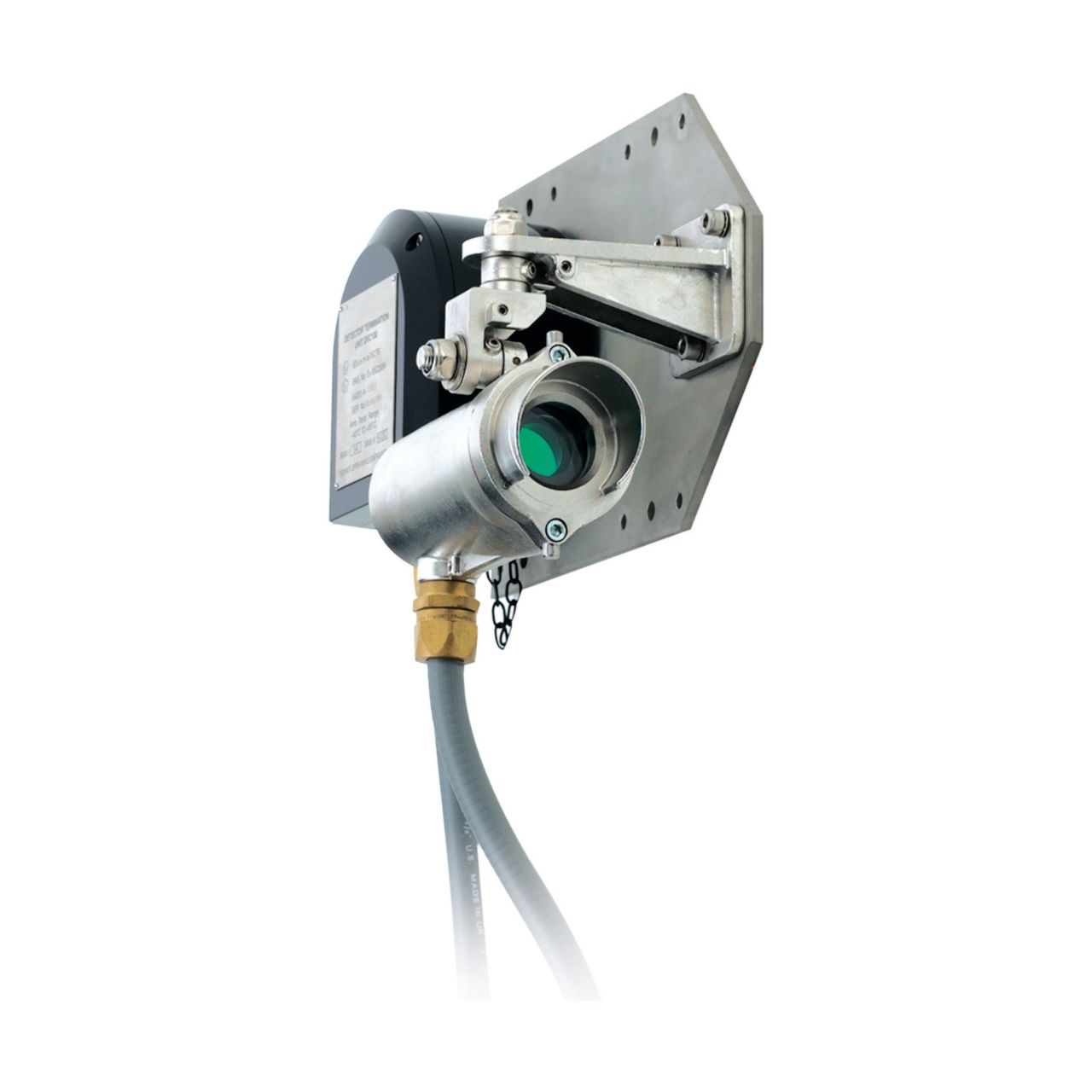

Searchline Excel- open path gas detector/ Searchline Excel Plus

The Searchline Excel is the World’s best selling infrared open path gas detector

Path Length - Short Range 5m to 40m (15ft to 130ft.), Medium Range 40m to 120m (130ft to 390ft.) and Long Range 120m to 200m (390ft to 650ft.) and 2m to 120m for plus

MAXIMIZE SAFETY COVERAGE EVEN IN MINIMAL VISIBILITY to Ensure optimal fire and gas safety by deploying cutting-edge optical gas detection that can see through even thick fog better than any other open path gas detectors whether NDIR or laser based.

Safety Approval ATEX

Searchzone Sonic

Provides reliable gas leak detection in a wide range of applications and working environments. By using a solid state sensor, completely sealed from moisture and contaminants, the Searchzone Sonik™ will identify gas leaks even in the harshest environments and adverse weather conditions.

Its robust sealed design with no moving parts and the advanced solid-state sensor allow for mounting in any orientation, even in the harshest environments.

The acoustic gas leak detector will respond quickly to a gas leak within a sensing range radius of typically 20m (65 ft), dependent upon background noise.

Gas detection devices, adding ultrasonic technology to a reliable mix of point and open-path gas detectors.

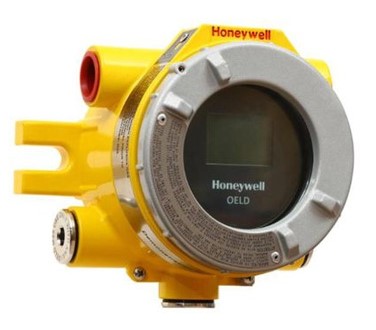

OELD (Optima Excel Local Display)

OELD is a smart junction box for either a Searchpoint Optima Plus or Searchline Excel gas detector.

OELD is hazardous location certified junction box for use with detectors that feature a 4-20 mA output.

The OELD unit has five entries – either M25 or 3/4” NPT (dependent on the version) and is supplied with three certified blanking plugs. Increased safety (Ex e)-approved versions of OELD has five entries for M25x1.5 only.

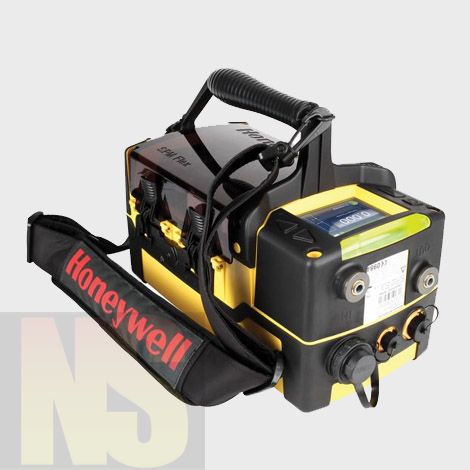

SPMFlex

Improving safety and productivity with the most flexible, D104 user-friendly tape-based gas detector for low-level toxics

Stands up to harsh conditions. Working in the sun and rain, around blasts of steam, or other challenging environmental conditions.

Crisp, clear visibility — from near and far

The SPM Flex, capable of working as both a fixed and a portable unit, is an important addition to your toxic gas monitoring system.

It is highly automated single-point monitor is intuitive, easy to use, and designed to fit the unique needs of your operation.
