Honeywell
MeshGuard S- RAE Systems by Honeywell Battery-Powered Wireless Gas Detector

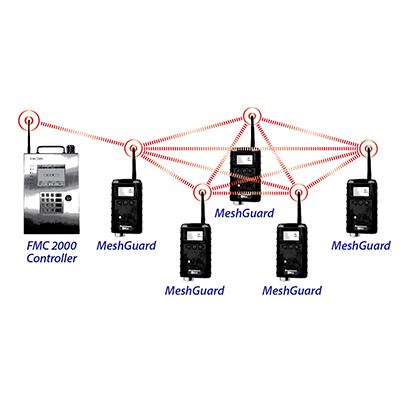

The RAE Systems by Honeywell MeshGuard gas detection monitor is a key building block of the MeshGuard intelligent network of connected sensors for gas detection in industrial safety and oil and gas applications.
Self-forming wireless network; units come online automatically
Multiple controller options for realtime wireless data collection and viewing
Self-healing network automatically routes data back to controller through best wireless path available
Magnetic mounting option for quick and easy MeshGuard installation
US and Canada
Class I, Division 1, Groups A, B, C,D, T4 Europe: ATEX IM1/II 1G Ex ia I/IIC T4 Customs Union: PO Ex ia I Ma/0Ex ia IIC T4 Ga PB Ex d ia I Mb/1Ex d ia IIC T4 Gb Contact manufacturer for country-specific certification
Applications: Oil and gas drilling operations
Oil and gas production
Plant maintenance turnarounds
Industrial safety
Tank farms
Shipyards and maritime

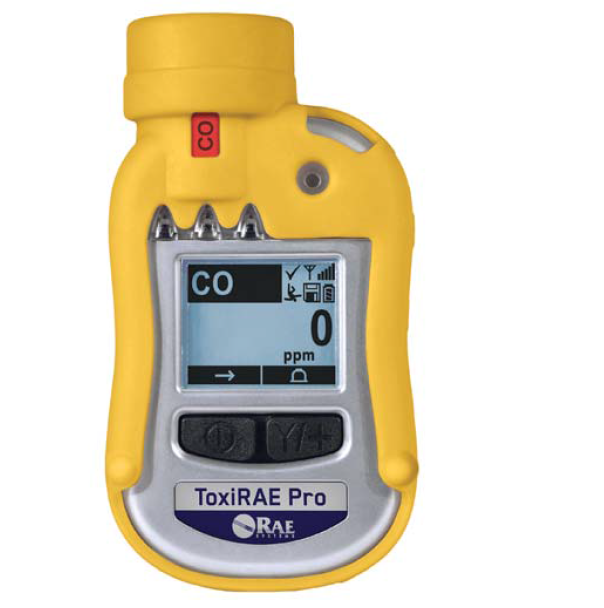

ToxiRAE Pro- Personal Wireless Monitor for Toxic Gases and Oxygen
Personal Wireless Monitor for Toxic Gases and Oxygen
Wireless access to real-time instrument readings and alarm status from any location
Over 20 intelligent interchangeable sensor options to cover a wide variety of gases
Unmistakable five-way local and remote wireless notification of alarm conditions
Easy to maintain with replaceable sensor, filter, and Li-ion battery
Fully-automatic bump testing and calibration with AutoRAE 2
Approvals
CSA: Class I, Division 1, Groups A, B, C and D. T-code T4 Class I, Zone 0 A/Exia IIC T4 ATEX: , II 1G, Ex ia IIC Ga T4 IECEx: Ex ia IIC Ga T4 China Ex: Ex ia IIC T4
Applications:
Agriculture
Chemical
Fire service / HazMat
Food and beverage
Oil and gas
Pharmaceutical
Pulp and paper
Steel manufacturing
Water and wastewater industries

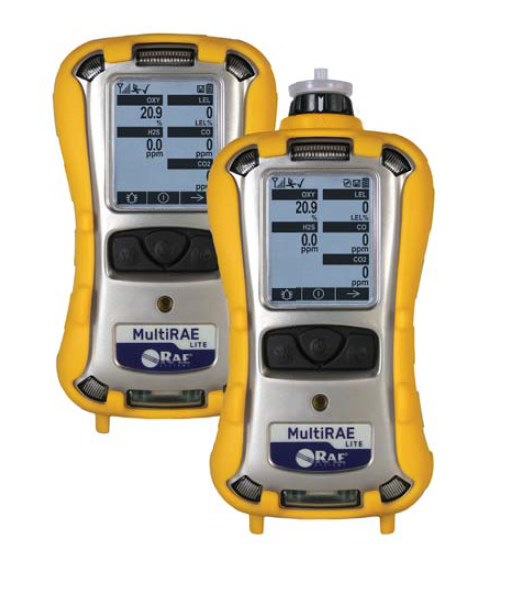

MultiRAE Lite - Wireless Portable Multi-Gas Monitor
The MultiRAE Lite is the optimal one-to-six1-gas monitor for personal protection and leak detection applications.
The MultiRAE Lite is available in pumped and diffusion versions and features the broadest selection of sensor options in its class.
Wireless access to real-time instrument readings and alarm status from any location
Unmistakable five-way local and remote wireless notification of alarm conditions including Man Down Alarm
Intelligent sensors store calibration data, so they can be swapped in the field
Large graphical display with easy-touse, icon-driven user interface
Approvals
CSA: Class I, Division 1, Groups A, B, C and D, T4 Class II, Division 1, Groups E, F, G T85°C ATEX: 0575 II 1G Ex ia IIC T4 Ga 2G Ex ia d IIC T4 Gb with IR Sensor installed I M1 Ex ia I Ma IECEx: Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor installed I M1 Ex ia I Ma IECEx/ANZEx: Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor installed Ex ia I Ma
Applications: Personal protection and multi-gas leak detection in industries such as:
Chemical
Food and beverage
Oil and gas (downstream)
Pharmaceutical
Telecommunications
Wastewater treatment

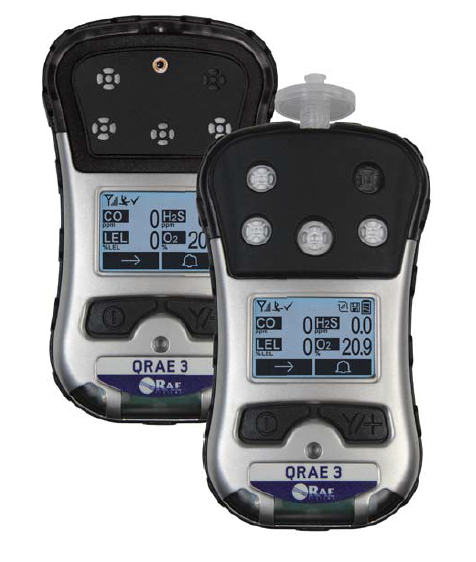

QRAE 3 Wireless 4-Gas Monitor
QRAE 3 is a wireless compact monitor for one to four gases.
Strong, protective, concussion-proof design
Real-time gas concentration readings and alarm status enabled by state-ofthe- art wireless technology
Large graphical display icon-driven user interface through intuitive, simple-tooperate two-button user interface.
Device Management with Honeywell SafetySuite
Easy access to pump, sensors, filter and battery compartment
Man Down Alarm with pre-alarm and real-time remote wireless notification
US and Canada
classified for use in Class I, Division 1, Groups A, B, C and D Europe: IECEx/ATEX (II 1G Ex ia IIC T4)
Application: Industrial safety
Oil and gas
Fireground “Toxic Twins” detection
Environmental
Fire and Emergency response
