Description:
Maxon offers one of the broadest lines of nozzle-mix burners in the industry. These refractory-less units feature advanced nozzle designs and provide the disadvantages of high turn-down ratios, low emission output and the ability to operate efficiently in high air turbulence.
Description:
Tank heating for
Dye Vats
Pickling Tanks
Spray Washers
Dip Tanks
Indirect Air Heaters
Indirect Bakery
Description:
Make up air heating such as mine shaft ventilation, automotive spray booths and combination spray booths/ Ovens Catalytic oxidizers, Paint dryers
Description:
Thermal incineration of combustible gaseous effluents
Description:
Textile Machines, Printing Machines, Other types of dryers While the burners in this line have the capabilities to produce extremely high temperatures (KINEDIZER has a range of 146 kW to 111,700 kW), some offer the lowest certified emission rates in the field. Application Include: Heat treatment furnances, paper, printing and board dryers, glass melting furnaces, smelters, oxidizers, calciners and many others.
Description:
Indirect Furnace heating
Description:
Heat Treatment Furnaces Smelters Incinerators Calciners Carbon Rod Baking Furnaces
Description:

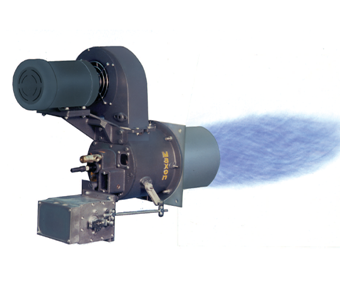

The KINEMAX® burner is a nozzle-mixing, medium velocity burner. It provides a stream of hot combustion gases that promote circulation within your furnace, improving both temperature uniformity and workload penetration.
- Exit velocities up to 300 km/h (85 m/s) to promote workload heat penetration and better furnace temperature uniformity
- Operate on-ratio, with excess fuel or with excess air to meet the specific demands of your combustion process needs
- Burns most clean, low pressure gaseous fuels or light oil
- Turndown capability up to 48:1
- Maximum application flexibility with 7 different sizes and maximum capacities ranging from 110 kW up to 2460 kW
- Lower fuel consumption using preheated combustion air (up to 425 °C)
- Refractory block for chamber temperatures up to 1650 °C
- Removable backplate, providing access for easy inspection and/or maintenance
- KINEMAX® burners can be used with oxygen enriched combustion air
Description:
Heat Treatment Furnaces Lehrs Calciners & Melting Furnaces
Description:
Maxon raw gas burners require no external combustion air source because, as the air stream passes through the profiled mixing plates and meets with the fuel, the resulting turbulence helps create very clean and efficient combustion.Emission rates are very low over a wide range of turndown ratios.Application include: Curing, Paint and print dying, paint baking, fume abatement and many others.
Description:
RadMax® Radiant Low NOx Burners are designed to deliver uniform, high intensity radiant energy for moisture removal in textile and paper ovens, paint drying, and powder coating, as well as many pre-heat, plastic forming, heat treating and annealing operations. With innovative ceramic or metal foam tiles, the RadMax® natural gas burner produces low to Ultra-Low NOx and CO levels for a wide variety of industrial gas burner applications.
Description:
Air heating in ovens and dryers, paint finishing lines, paper and textile machines, food baking ovens, coffee roasters, grain dryers, and fume incinerators
- Burns any clean fuel gas
- Fires into passing air streams
- Requires only low pressure gas
- Provides clean combustion with low NOx levels
- Compact burner design provides quick and easy installation
- Simple field adjustment and maintenance
- 40:1 turndown or more
- Over 90 different styles and sizes
- Heat releases to 16,500,000 Btu/hr
- Cost-effective external blower (EB) version
Description:

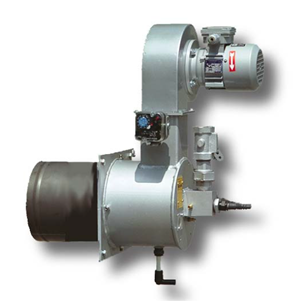

The VALUPAK® is designed for process air heating applications. A motorized gas control valve controls the heat output of the burner over the full operating range. The gas flows through the nozzle and then along the inside of the burner cone where combustion air is progressively and tangentially mixed with the gas. This results in a short, very stable flame and clean combustion.
- High turndown
- Available in 6 sizes
- Capacities: 0.007 MBtu/hr - 4 MBtu/hr
- Stable and clean combustion
- Suitable for UV scanner and flame rod
- Natural gas and LPG
- Low gas pressure requirements
- Ease of installation and operation with low maintenance requirements
- All metal construction
- Multi voltage and frequency blower motors
Description:

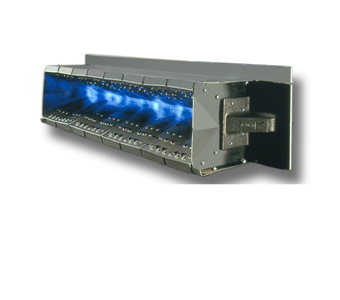

MAXON APX™ burners are packaged nozzle-mix line burners, especially designed for fresh or low temperature recirculating air heating applications.
- Corrosion resistant main gas/air body and durable stainless steel mixing plates
- Up to 40:1 turndown
- Up to 1.36 MBtu/h per foot
- Packaged units up to 15 ft in length
Description:

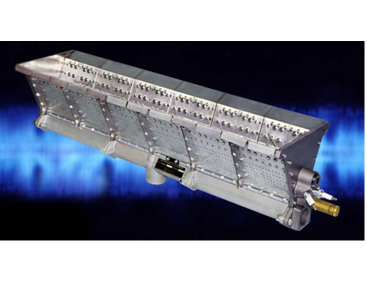

MAXON Series NP-LE AIRFLO® burners consist of a robust cast-iron or aluminum burner body (which serves as the gas manifold) drilled to discharge the gaseous fuel between diverging stainless steel mixing plates.
- Designed for direct-fired make-up air and process applications
- Up to 40:1 turndown
- High capacity - up to 1,000,000 Btu/h/ft
- Short flame length
Description:
MAXON's A Style Synchro flow control valve bodies are designed to meet ANSI flange specifications. High pressure rating flow control valves are available in cast iron, carbon steel and brass bodies. SYNCHRO Gas Valves may be used independently for individual adjustable gradient fuel flow control, or in tandem with other fuel and air control valves for more sophisticated multi-zone control or multi-fuel applications.
Description:
MAXON's Series "CV" Flow Control Valves incorporate a full-flow, fixed gradient butterfly valve design for high capacities at low pressure drops, using minimum operating torque. Series "BV" Balancing Valves are used to balance gas or air flows in multiple-burner systems fed by a common manifold. These gas valves feature a full-flow butterfly design with provision for locking in any position. Both flow control valves are used for air, gas and oil proportioning control.
Description:
MICRO-RATIO® Flow Control Valve assemblies are used for air, gas and oil proportioning control. The multiple screw cam assembly provides mechanical adjustment capabilities to the air/fuel ratio at each valve position throughout the entire capacity range of your industrial burner system. Throttling range of this gas valve is fully adjustable and designed to operate over the extremely wide turndown capabilities of MAXON's modern burner systems.
Description:
MAXON's Electro-Pneumatic Shut-Off Valves are ideally suited for reliable shut off of various fuel gases and liquids. MAXON gas valves require only a power source from your burner management system or DCS and an instrument air feed. MAXON shut off valve operating pressures and valve Cv's are among the highest available in the industry meaning you can move more fuel in smaller size valves than competitive products.
Description:
MAXON's Electro-Mechanical Shut-Off Valves are ideally suited for reliable shut off of various liquids. MAXON valves require only a power source from your burner management system or DCS. MAXON valve operating pressures and valve Cv's are among the highest available in the industry meaning you can move more fuel in smaller size valves than competitive products.
Description:
These electrically actuated valves shut off gas or oil lines in less than one second. All shut off valves come equipped with MAXON's long-lasting metal-to-metal seating. A variety of optional body materials and body connections provide reliable operation even for highly corrosive fuels and for oxygen. Application flexibility is provided with 3/4" through 6" diameter line sizes, Cv flow factors up to 1230, and line pressures up to 125 PSIG (8.6 bar).
Description:
MAXON ignitors and flame rods are engineered specifically for your burner products. Quality construction provides maximum service life and dependable operation to keep your heating processes running smoothly. In addition to replacements, consider keeping spares on hand for all your heating needs.
